Aircraft Alloy Steel Complete Brake System for Sprint Cars with Wilwood Calipers

$1,429.00

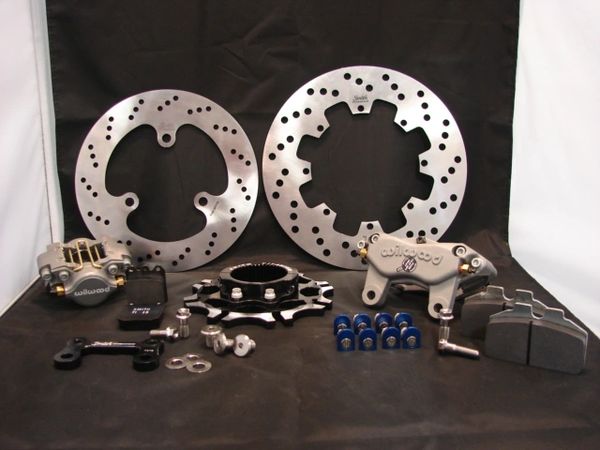

Complete Brake System Kit Contains:

1 - 12.200" x .240 thick Aircraft Alloy Steel rotor (weight = 4.34 lbs)

1 - splined brake rotor hub (one piece billet aluminum construction) no spacer required - includes all titanium hardware

1 - forged WILWOOD brake caliper - Gray T3 hard anodized (see caliper on the website for a thorough description)

2 - 7/16 - 14 x 1-3/8 reduced hex titanium bolt - drilled for tie wire (for caliper to rear)

1 - set inboard brake pads (2 pads)

1 - Aluminum Brake Pad Spacer Kit - 0.90 thick

1 - 10.875 diameter x .150 thick Aircraft Alloy Steel Left Front Rotor  (weight = 2.31 lbs)

1 - Gray Anodized, 2 piston, 3.25 lug mount, WILWOOD Left Front Brake Caliper

1 - Left Front Mounting Bracket

1 set - left front brake pads (2 pads)

3 - 1/2 - 20 x .700 countersunk titanium bolts with shims (for rotor to hub)

2 - 3/8 - 24 x 1 titanium reduced hex head bolts - drilled for tie wire (for caliper to bracket)

1 - Aluminum Brake Pad Shim Spacer Kit - 0.90 thick - for Left Front Rotor

Part #:  CBS-WIL-SPR-AS
